Details MEVD17.2.G |
 |
Information| Remark | S55 engine | | BSL130 | no | | BSL131 | yes | | BSL132 | no | | BSL-ADP | required |

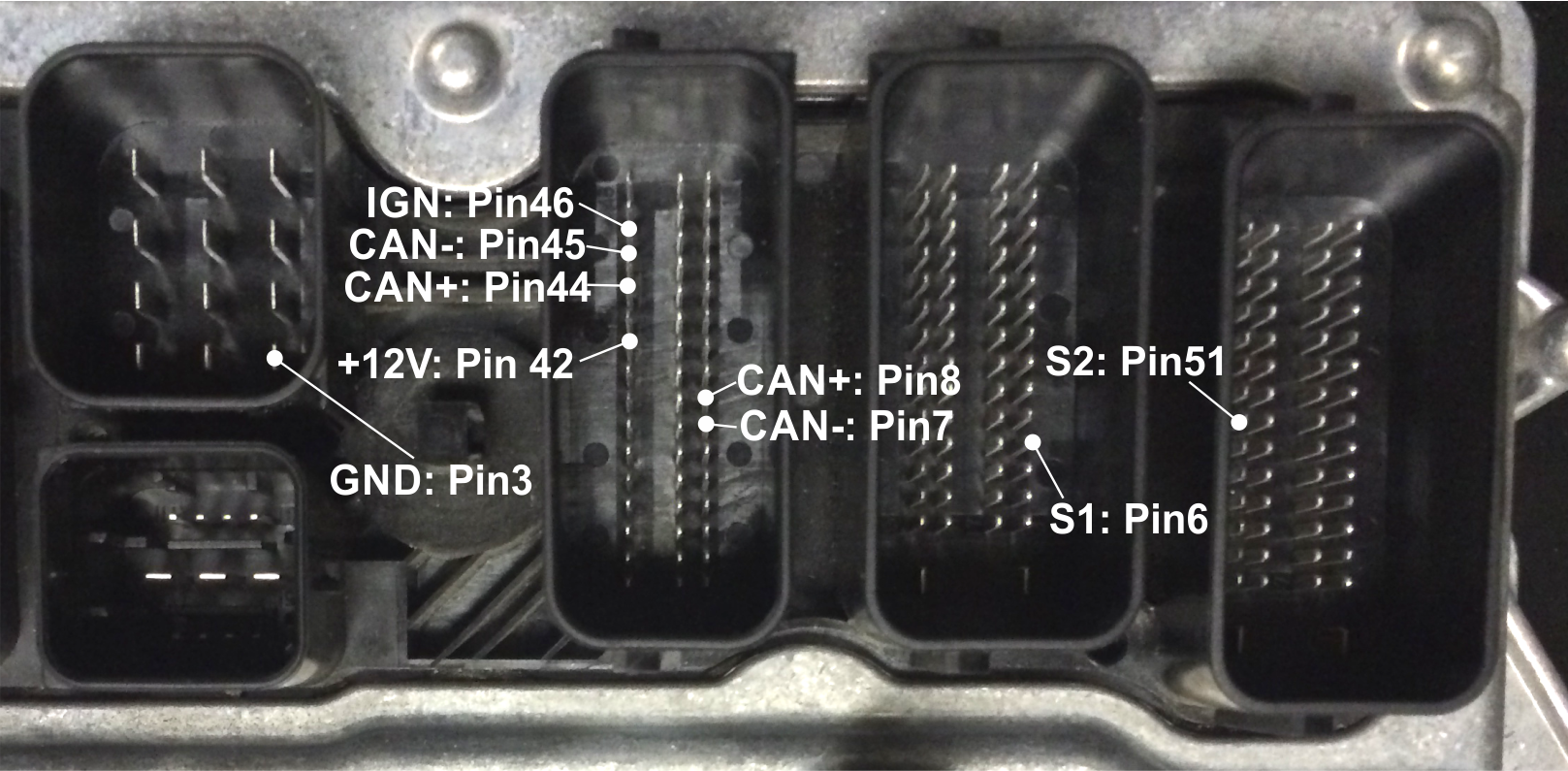

| ECU pins| Use | Plug - Pin | | 12V | M1 - Pin 42 | | Ign | M1 - Pin 46 | | Gnd | M5 - Pin 3 | | Can+ | ADP: M1 - Pin 8
Boot: M1 - Pin 44 | | Can- | ADP: M1 - Pin 7
Boot: M1 - Pin 45 | | S1 | M2 - Pin 6 | | S2 | M3 - Pin 51 |

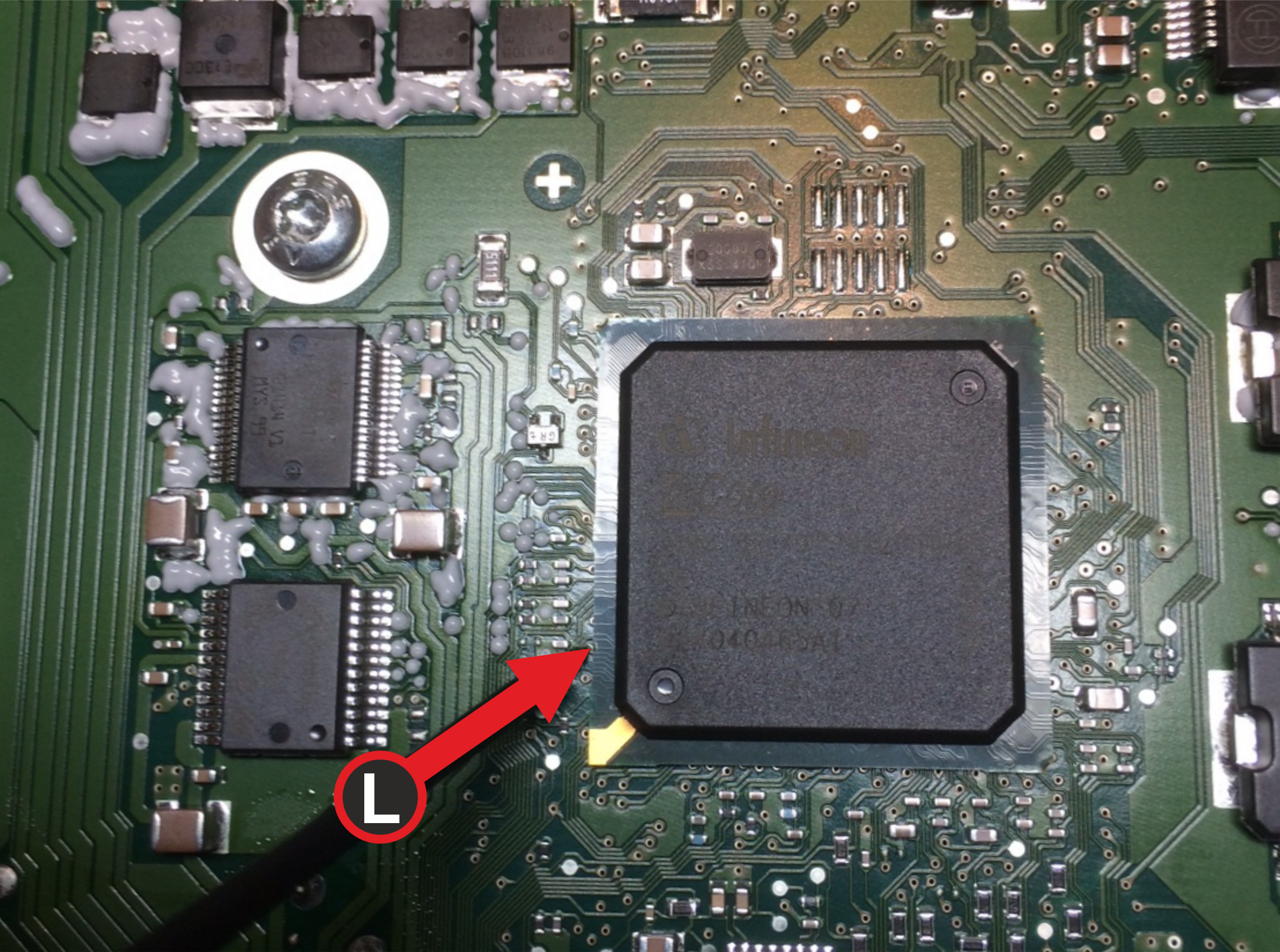

| Pictures |  |  |
|
