Details MEVD17.2.3 |
 |
Information| Remark | TPROT13 | | BSL130 | no | | BSL131 | yes | | BSL132 | no | | BSL-ADP | required |

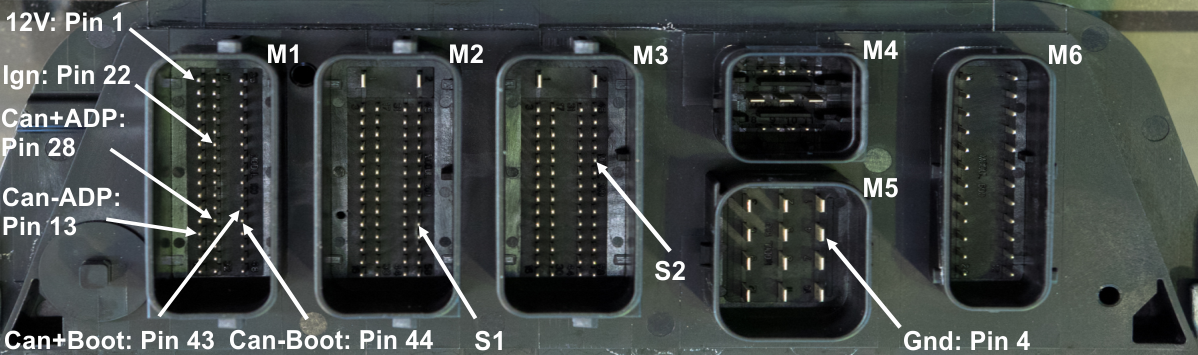

| ECU pins| Use | Plug - Pin | | 12V | M1 - Pin 1 | | Ign | M1 - Pin 22 | | Gnd | M5 - Pin 4 | | Can+ | ADP: M1 - Pin 28
Boot: M1 - Pin 43 | | Can- | ADP: M1 - Pin 13
Boot: M1 - Pin 44 | | S1 | M2 - Pin 54 | | S2 | M3 - Pin 49 |
