Details MEDC17.9 |
 |

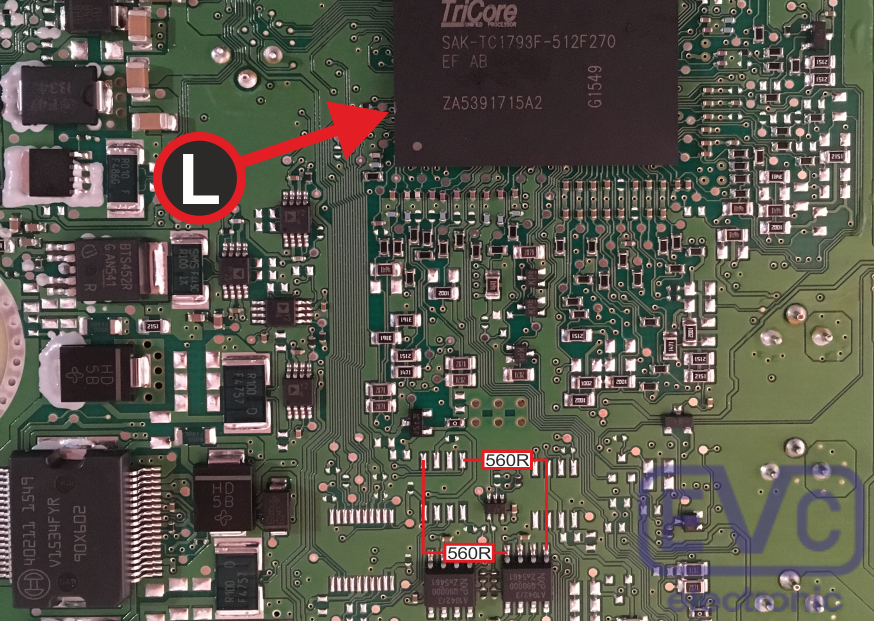

Information| Remark | Two resistors necessary | | BSL130 | yes | | BSL131 | yes | | BSL132 | yes | | BSL-ADP | required |

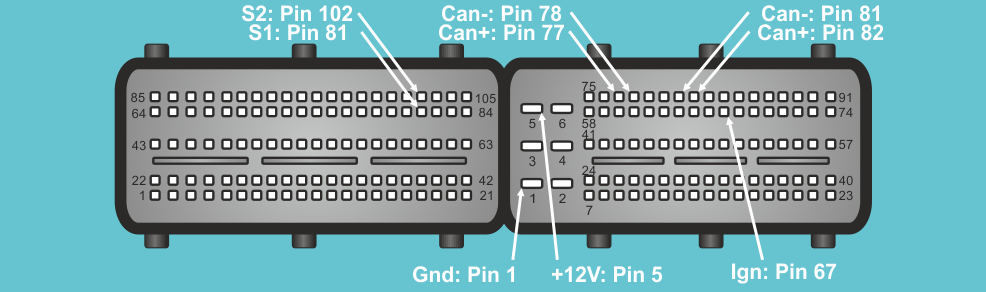

| ECU pins| Use | Plug - Pin | | 12V | T91 - Pin 5 | | Ign | T91 - Pin 67 | | Gnd | T91 - Pin 1 | | Can+ | ADP: T91 - Pin 77
Boot: T91 - Pin 82 | | Can- | ADP: T91 - Pin 78
Boot: T91 - Pin 81 | | S1 | T105 - Pin 81 | | S2 | T105 - Pin 102 |
