Details EMS2511 |
 |
Information| Remark | In the software setup processor type TC1791 | | BSL130 | no | | BSL131 | yes | | BSL132 | no | | BSL-ADP | not required |

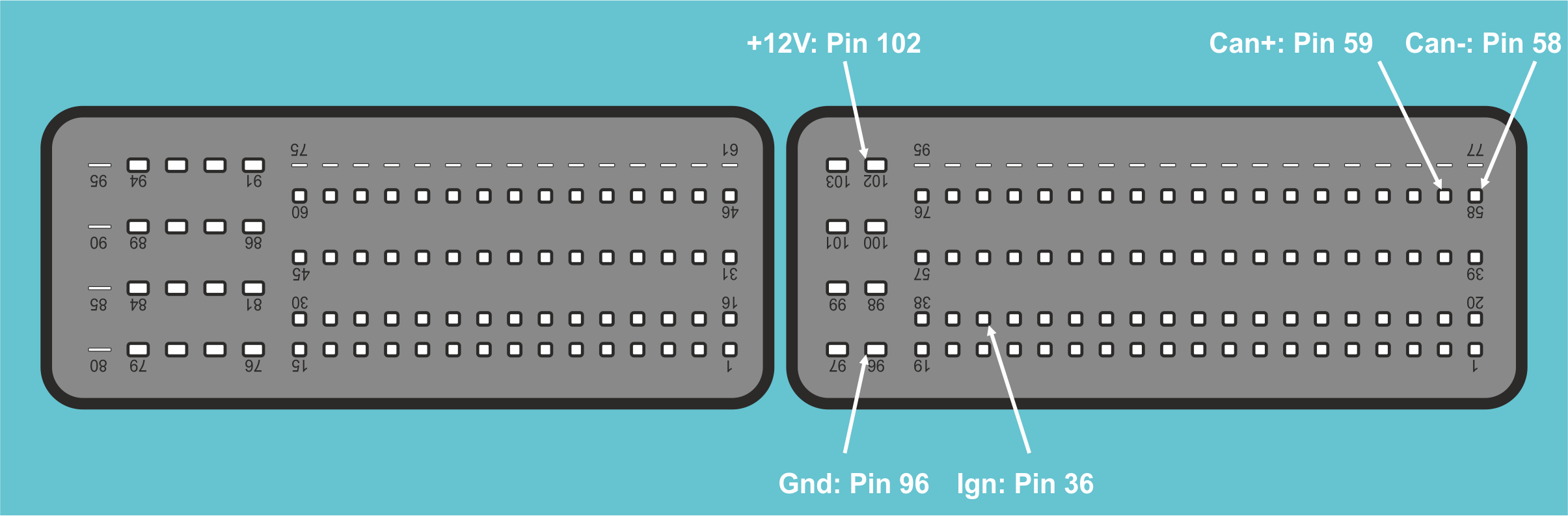

| ECU pins| Use | Plug - Pin | | 12V | T103 - Pin 102 | | Ign | T103 - Pin 36 | | Gnd | T103 - Pin 96 | | Can+ | T103 - Pin 59 | | Can- | T103 - Pin 58 |

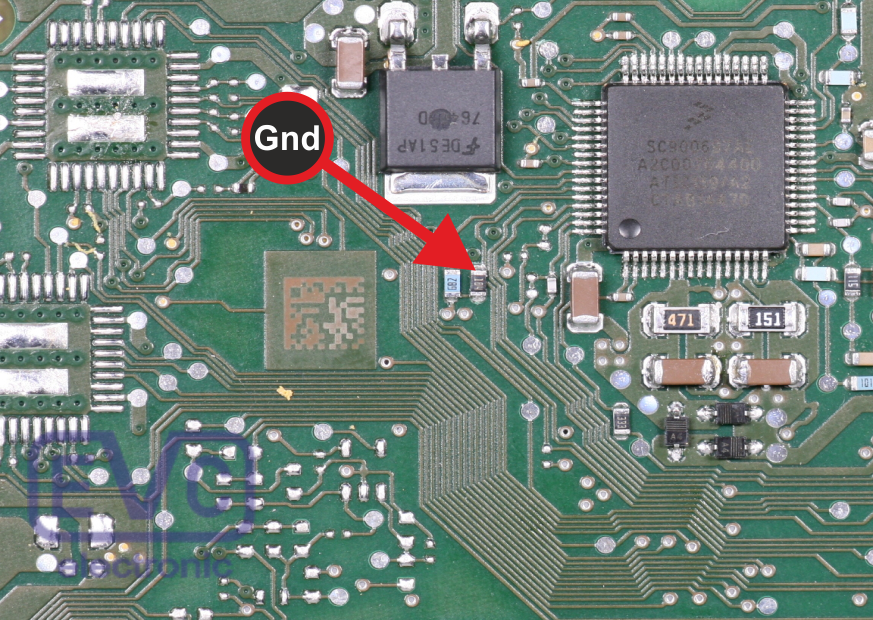

| Pictures |  |  |  |
|
