Details EDC17CP57 |
 |
Information| Car Manufacturer Designation | CR61.11, CR43.40 | | BSL130 | no | | BSL131 | yes | | BSL132 | yes | | BSL-ADP | required |

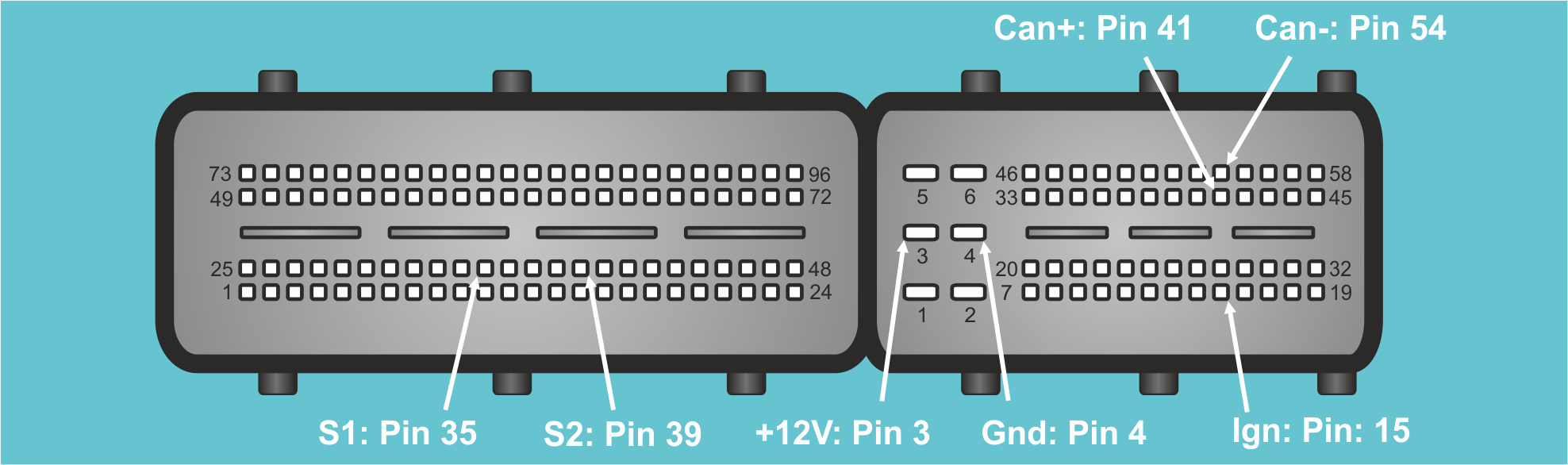

| ECU pins| Use | Plug - Pin | | 12V | T58 - Pin 3 | | Ign | T58 - Pin 15 | | Gnd | T58 - Pin 4 | | Can+ | T58 - Pin 41 | | Can- | T58 - Pin 54 | | S1 | T96 - Pin 35 | | S2 | T96 - Pin 39 |

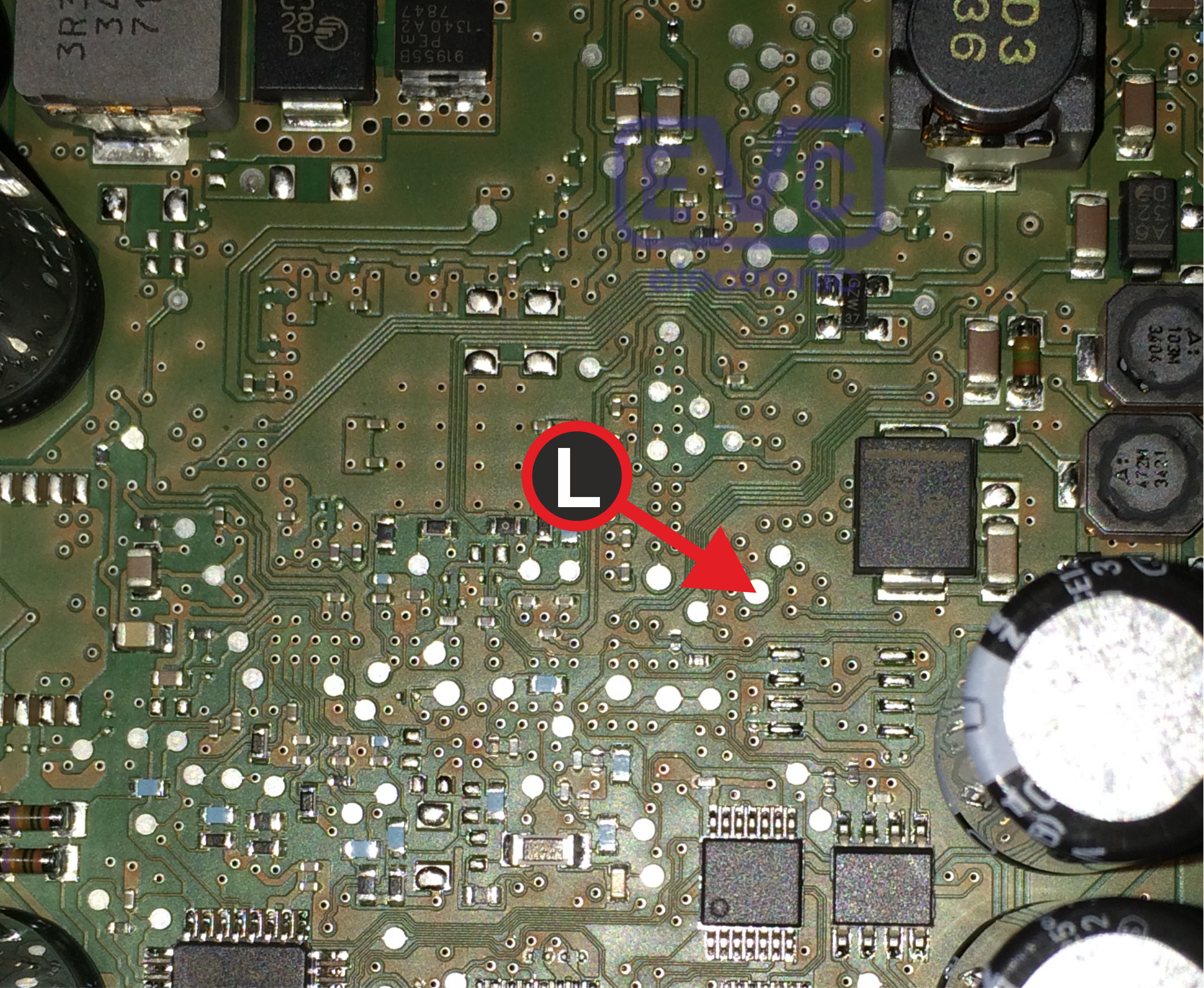

| Pictures |  |  |
|
