Details EDC17CP49

Information

Car Manufacturer DesignationDDE7.51
BSL130yes
BSL131yes
BSL132yes
BSL-ADPrequired

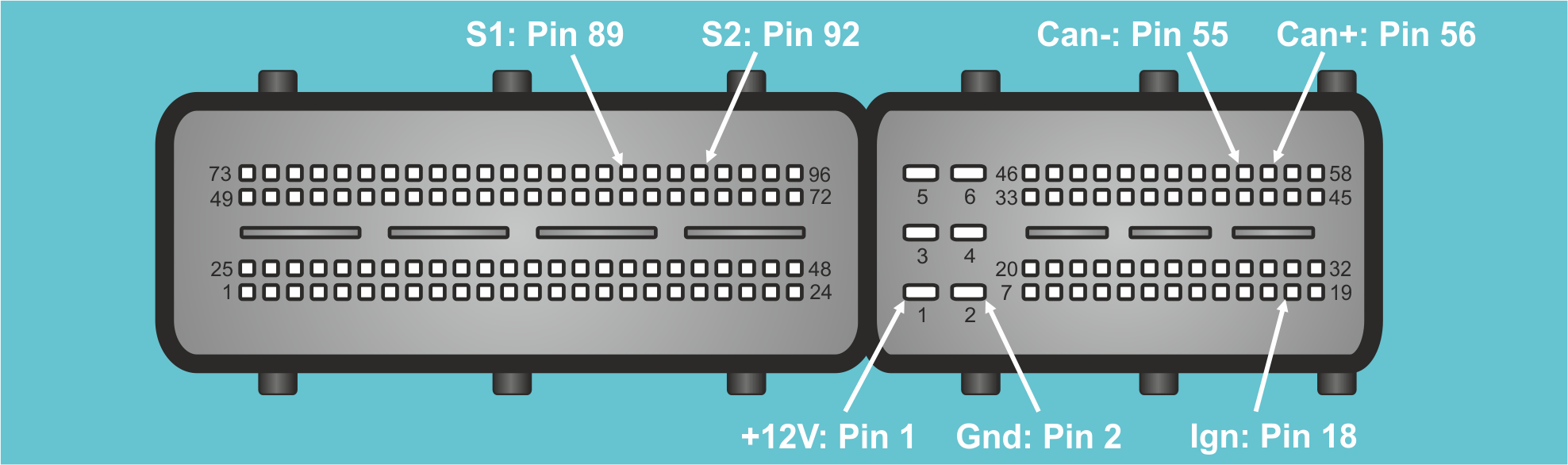

ECU pins

UsePlug - Pin
12VT58 - Pin 1
IgnT58 - Pin 18
GndT58 - Pin 2
Can+T58 - Pin 56
Can-T58 - Pin 55
S1T96 - Pin 89
S2T96 - Pin 92

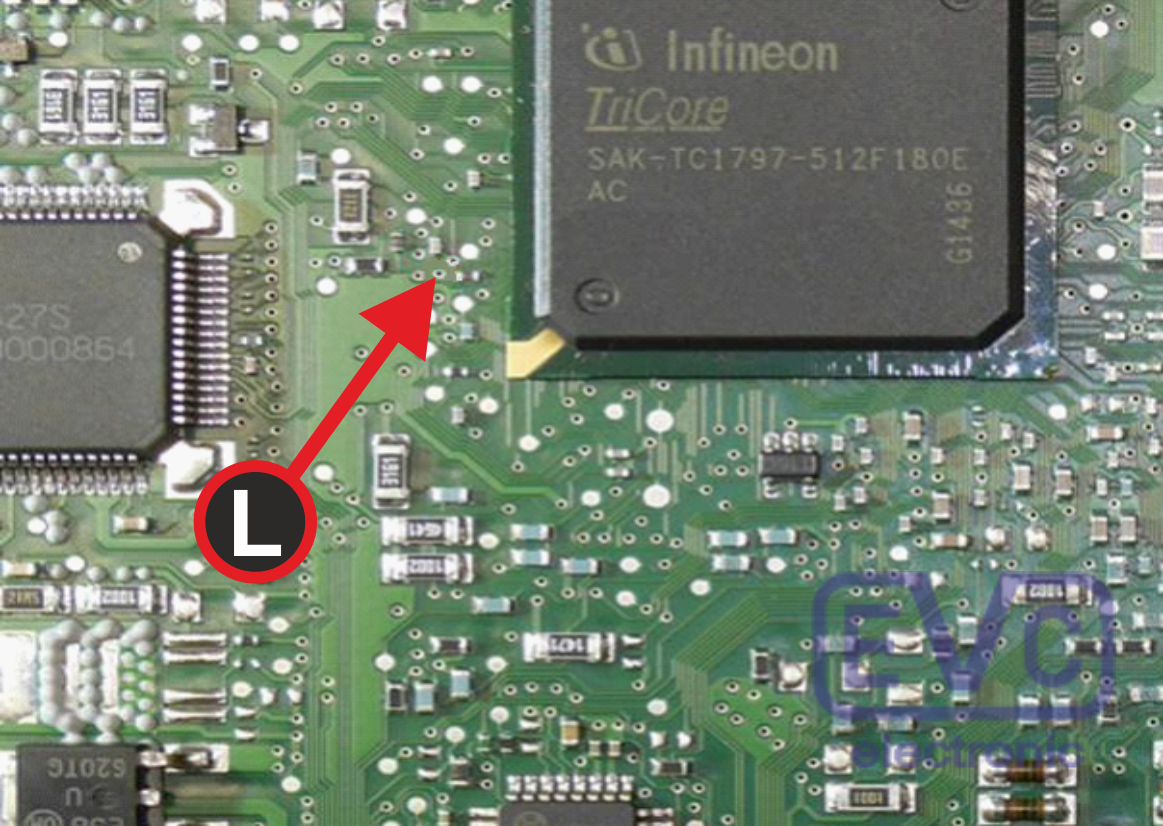

Pictures
