Details EDC17C50

Information

BSL130yes
BSL131no
BSL132yes
BSL-ADPrequired

ECU pins

UsePlug - Pin
12VT58 - Pin 1
IgnT58 - Pin 18
GndT58 - Pin 6
Can+T58 - Pin 56
Can-T58 - Pin 55
S1T96 - Pin 89
S2T96 - Pin 92

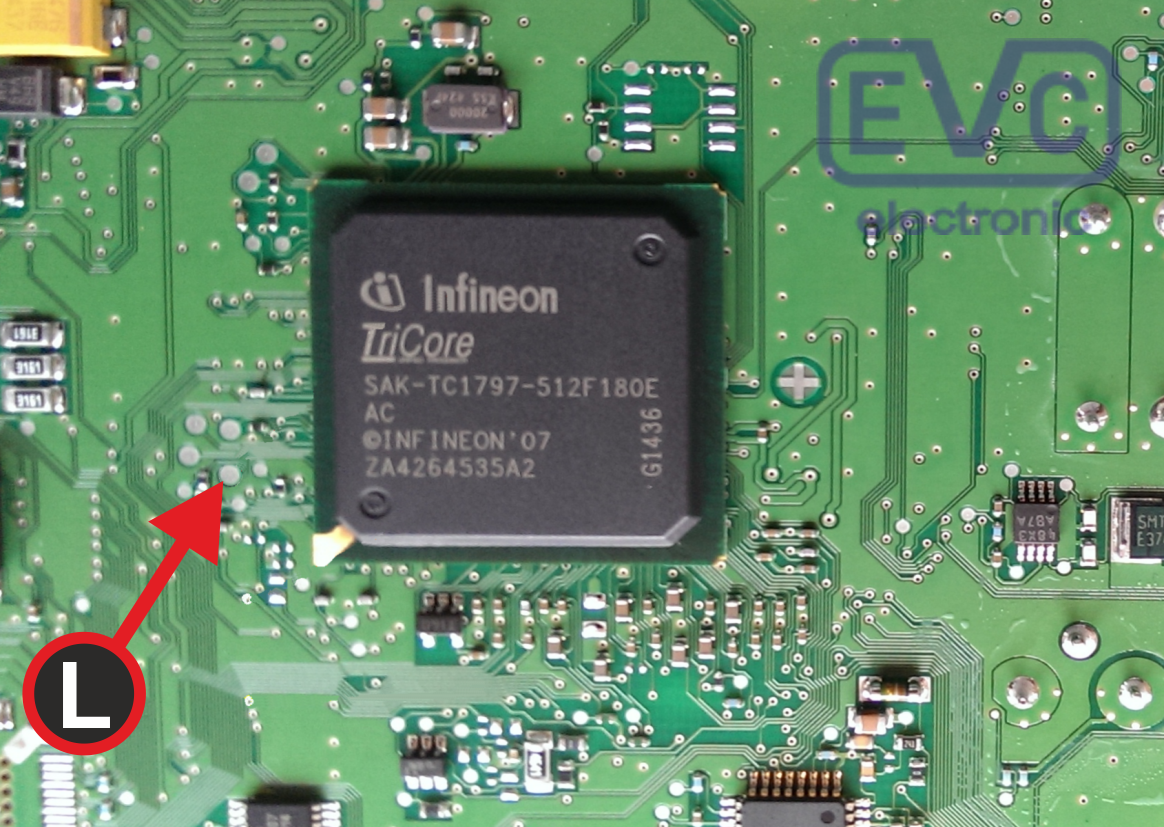

Pictures
