Details EDC17C10_v2 |
 |
Information| BSL130 | yes | | BSL131 | no | | BSL132 | yes | | BSL-ADP | not required |
| ECU pins| Use | Plug - Pin | | 12V | Con3 - Pin 5 | | Ign | Con3 - Pin 36 | | Gnd | Con3 - Pin 53 | | Can+ | Boot: Con3 - Pin 40, ADP: Con3 - Pin 38 | | Can- | Boot :Con3 - Pin 52, ADP: Con3 - Pin 50 | | S1 | Con1 - Pin D3 | | S2 | Con1 - Pin J1 |

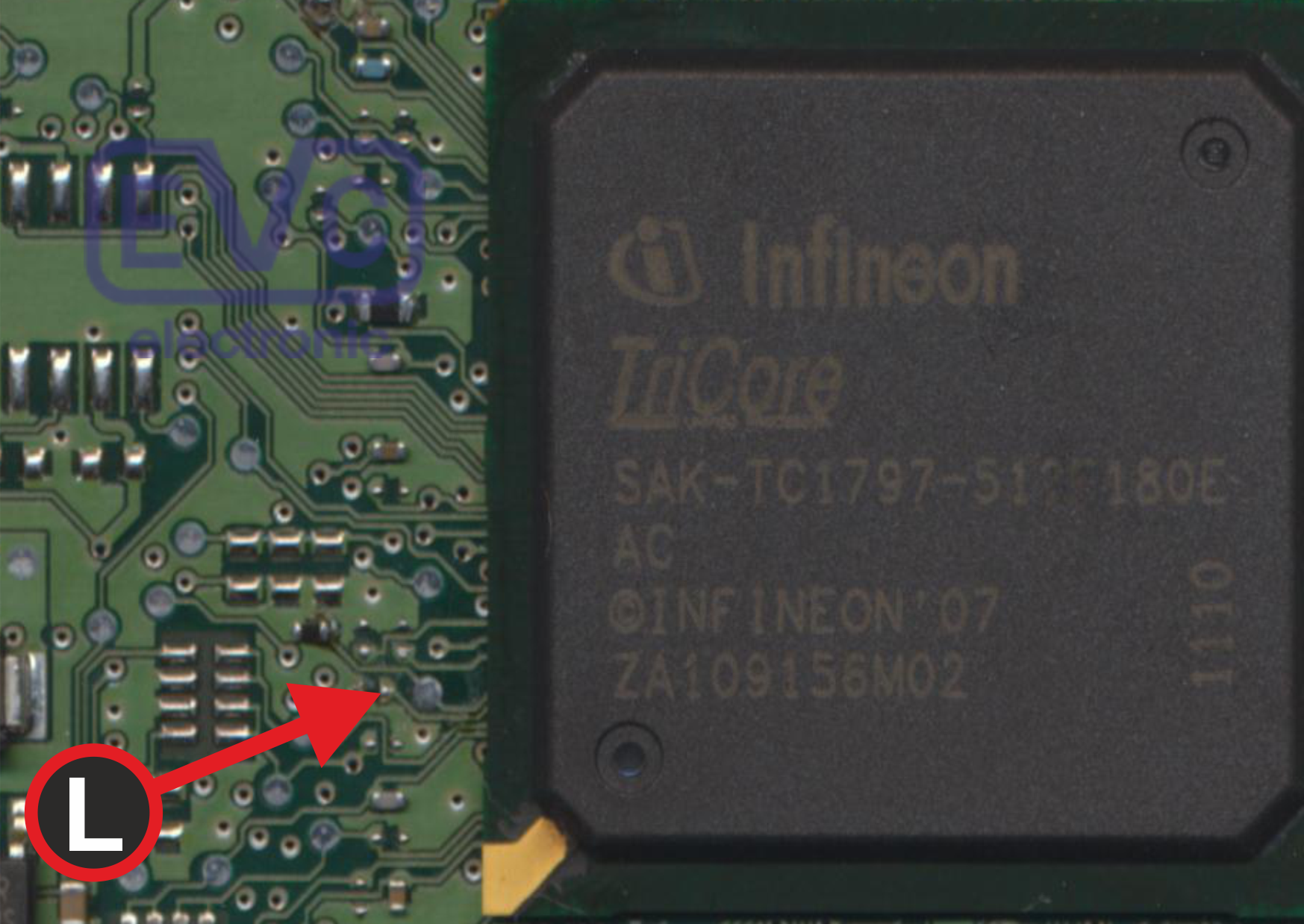

| Pictures |  |
|
